Juice type aseptic tank system

Read 2162 times

Preface

With the improvement of people's living standards, it has become a trend for consumers to pursue pure natural food materials. More and more fruit and vegetable juices choose low-temperature aseptic filling. In order to avoid the backflow of products in the filling process, UHT sterilizer and aseptic filling machine need to be stored in the aseptic medium term, which is different from the traditional aseptic tank system of dairy products, The fruit juice aseptic tank system launched by Tofflon Joy has sufficient experience and cost advantages in the field of high-end fruit and vegetable juice processing, short delivery time and high cost performance.

At present, it has been successfully applied to orange juice, Rosa roxburghii juice, mango pulp, green plum pulp, grape juice, dragon fruit pulp, red bayberry juice and other fruit and vegetable juices.


Technical Parameter

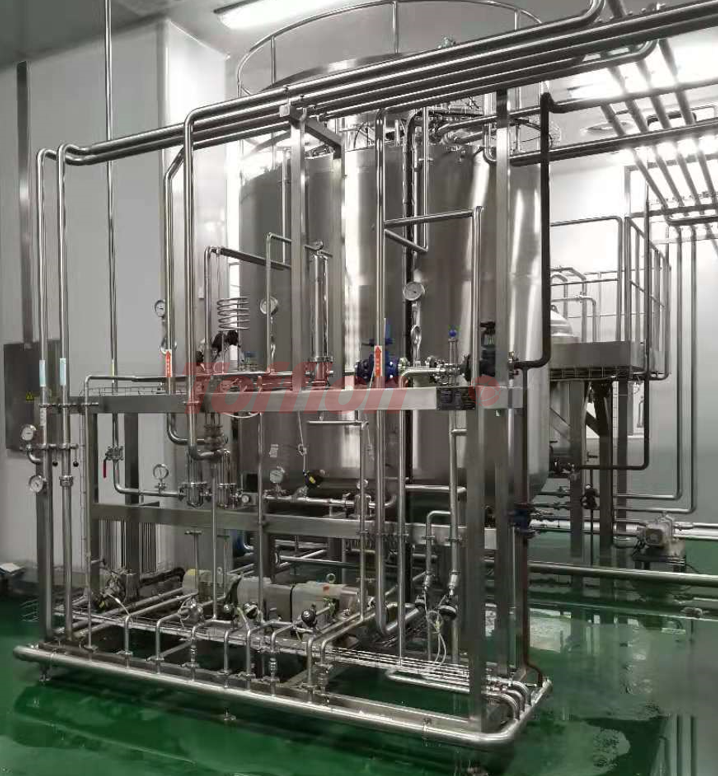

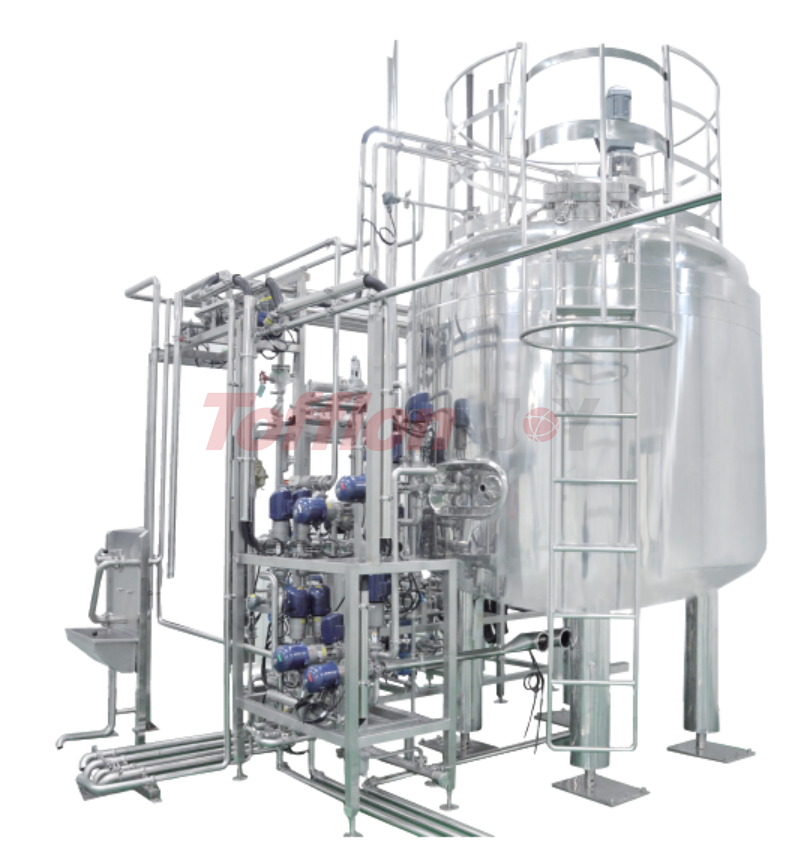

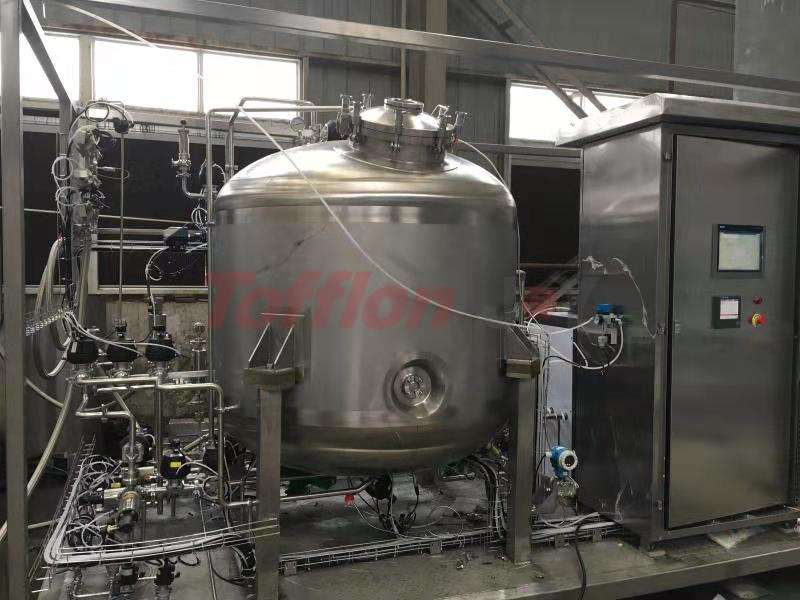

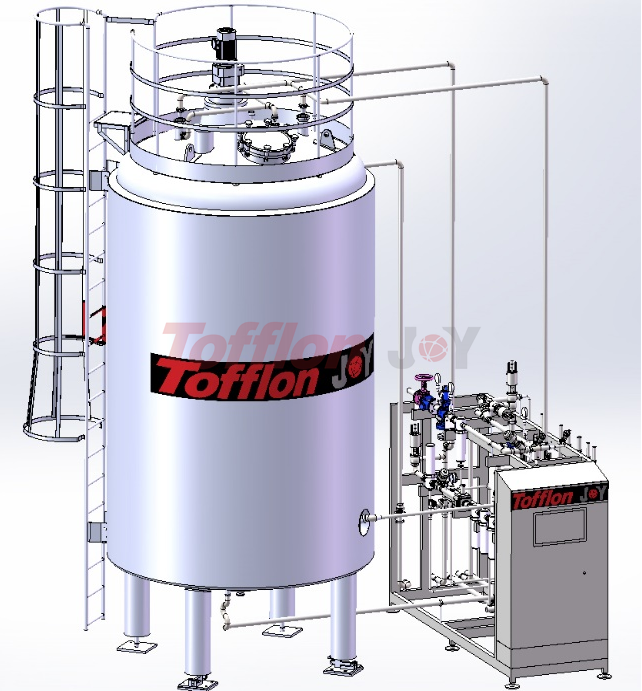

The juice type aseptic tank system is a flexible solution, which can be delivered, installed and used in a very short time. It is mainly composed of tank body, valve group, CIP system and PLC system. It can be preassembled and factory tested. The system is equipped with aseptic compressed air and steam filtration module with pressure regulation. Different types of agitators are prepared according to different materials to ensure the uniformity of products.

●Production capacity：5m³~60m³

●Inlet flow：3m³/h~60m³/h

●Maximum product pressure：3Bar

●Product temperature: normal temperature

● Maximum running time: 120 hours

Equipment characteristics

?Pre assembled and factory tested, convenient and fast installation based on standardized design;

? It can be integrated with UHT control system or filling machine to meet the demand of UHT connecting multiple filling machines;

?Continuous product replacement or equipment cleaning to avoid secondary sterilization caused by product reflux;

?Equipped with remote module, which can carry out system maintenance in real time;

?Repair the faults of the front and rear sections without stopping the machine;

?Intelligent operation, simple operation and high security.

Application fields

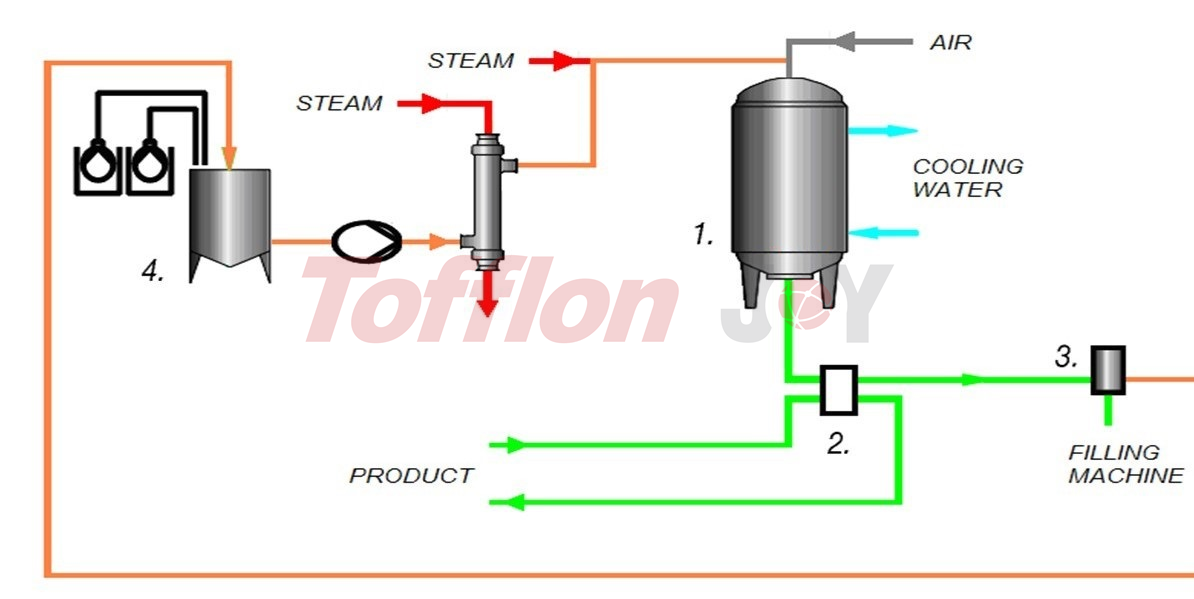

The juice type aseptic tank system is used in the aseptic production line. It is a buffer tank and storage tank for receiving all liquid aseptic products sterilized by ultra-high temperature. The product is multifunctional and suitable for fruit and vegetable juice products or liquid food with pH ≤ 4.2; It can maintain the high quality of products, the flavor is not easy to deteriorate, and reduce the loss of nutrients.
